Description

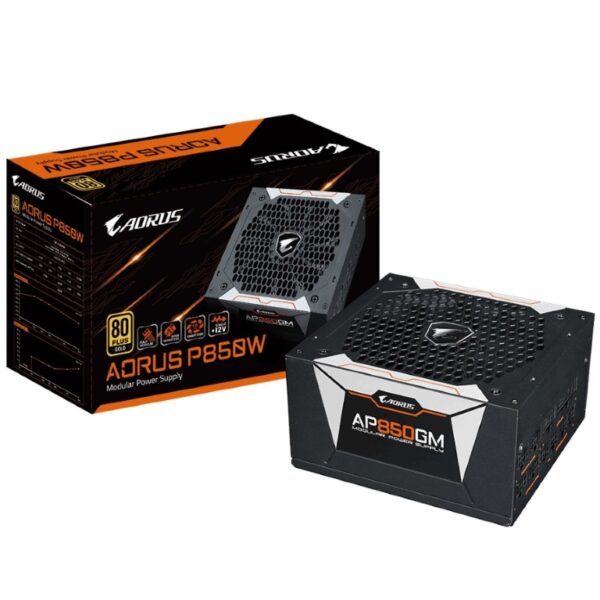

Gigabyte AP850GM
AORUS 850W ATX PSU Power Supply
80+ Gold Modular >90%
135mm Fan Black Flat Cables Single +12V Rail
Japanese Capacitors >100K Hrs
MTBF Features Fully Modular Design
High quality 100% Japanese Capacitors
135mm 2 ball bearing smart fan with fan stop function
80 PLUS Gold certified: above 90% efficiency at 50% load
Single +12V rail OCP/OTP/OVP/OPP/UVP/SCP protection
Model GP-AP850GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 10A Input Frequency 47-63 Hz
Output Capacity 850W
Dimension 150 x 160 x 86mm
Fan Type 135mm
Double ball bearing fan 80 PLUS Gold Efficiency 90% at typical load
MTBF >100,000 hours Protection
OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100ms ~ 150ms Hold Up Time > 16m sec at full load (115V) Cable Type Flat,
All black Connectors ATX/MB 20+4 Pin x 1 : 650mm CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1 PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2 SATA x6 + 4 Pin Peripheral x2 : 550mm+100mm+100mm+100mm*1 450mm+100mm+100mm+100mm *1 4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1 4 Pin Floppy x 1 : 100mm
